Atlas Asansör Yolcu Asansörleri
KLEEMANN Atlas NA is the ideal Traction Machine Roomless (MRL) solution for rated loads up to 3500 lbs, designed according the ASME A17.
Bu ürün için en uygun fiyat teklifini almak için bizimle iletişime geçin.
Teklif İsteTeknik Özellikler
| Model | Traction Atlas NA |
| Rated Load (Per Platform) | up to 3500lbs (1589 kg) (per platform) |
| Suspension | 2:1 |
| Machine Room | MRL |
| Max Travel (m) | 150' – 0" (45.7m) |
| Max Number of Stops | 13 |
| Max Speed (m/s) | up to 350fpm (1,75m/s) |
| Min Pit Depth (mm) | 5’ – 0” (1524mm) for 200fpm & 5' - 5 ½" (1648mm) for 350fpm |
| Minimum Total Overhead Height | 13′ – 2 ⅜” (4020mm) |
| Maximum car entrances | 2 |
| Complies with | ASME A17.1 code |
Ürün Açıklaması

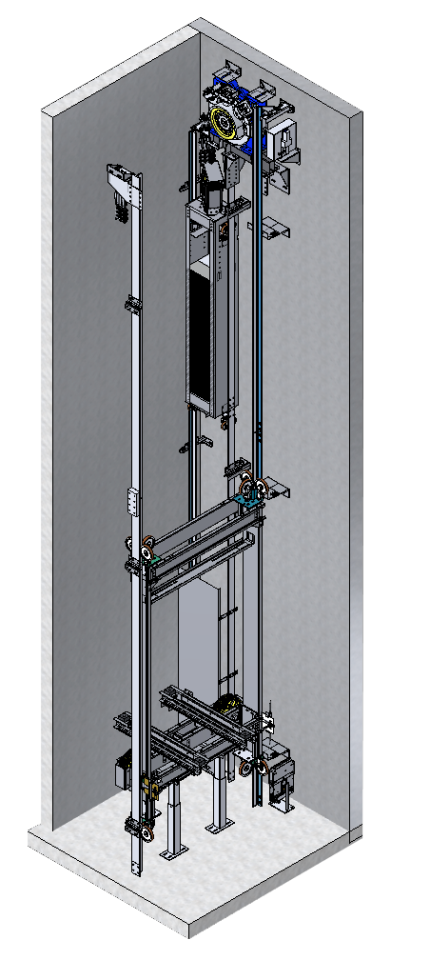

KLEEMANN Atlas NA is the ideal Traction Machine Roomless (MRL) solution for rated loads up to 3500 lbs, designed according the ASME A17.1 code. It is equipped with a premium quality gearless motor and a state-of-the-art inverter that enable outstanding ride quality, elimination of noise and very low energy consumption. Atlas NA MRL Gearless is designed to achieve efficient use of space inside the hoistway as well as ease of installation and maintenance.
