Asansör Yolcu Asansörleri

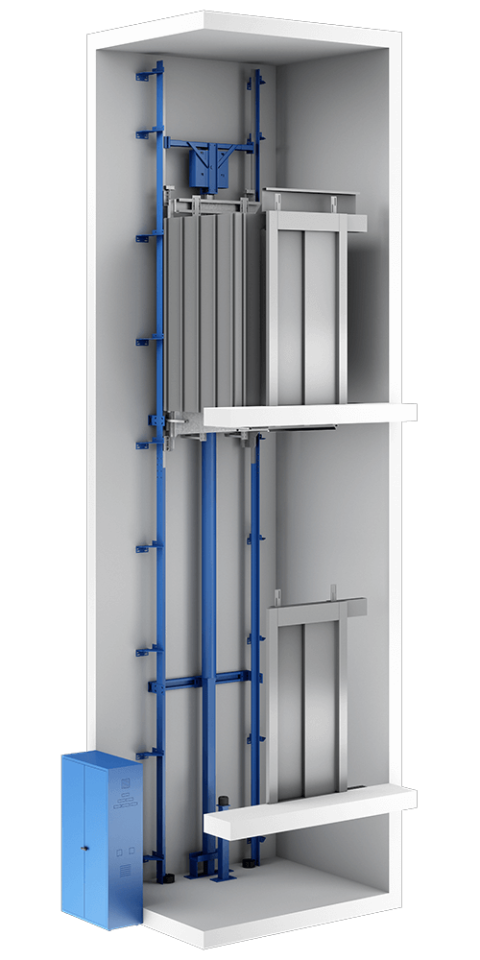

Hydraulic Cantilever Roped (HAI), a space-saving solution for narrow shafts, supporting loads up to 3000 lbs.
Bu ürün için en uygun fiyat teklifini almak için bizimle iletişime geçin.
Teklif İsteTeknik Özellikler
| Model | Hydraulic Cantilever Roped (HAI) |
| Rated Load (Per Platform) | up to 3000lbs (1362kg) |
| Suspension | 1:2 |
| Machine Room | MRL (MR) |
| Max Travel (m) | 84' – 0" (25,603m) |
| Max Number of Stops | 8 |
| Max Speed (m/s) | up to 150fpm (0,75m/s) |
| Min Pit Depth (mm) | 4' - 0" (1219mm)(1) / 5' - 0" (1524mm)(2) |
| Minimum Total Overhead Height | 11' - 10 ¼" (3610mm) for cabin height 7’-0’’ & 12' - 7 ¾" (3855mm) for cabin height 8’ – 0’’ |
| Maximum car entrances | 3 |
| Complies with | ASME A17.1 code |
Ürün Açıklaması
Hydraulic Cantilever Roped (HAI), a space-saving solution for narrow shafts, supporting loads up to 3000 lbs. Machine room (MR) and Machine roomless (MRL) commercial and public elevators require quality, reliability, safety and speed of service above all. KLEEMANN elevators go through both independent and in-house quality testing to ensure absolute safety and guaranteed parts compatibility. All KLEEMANN elevators are legislation compliant and adhere to the strictest safety standards. Quick and easy installation limits disruption to manufacturing operations.
